Ultra Panel Series

CEI Materials' Ultra Panel Series offers a flexible architectural panel solution where appearance, durability, and installation efficiency all matter. Manufactured in steel, aluminum, and Galvalume Plus, these panels are designed to support a range of project needs with options for horizontal or vertical orientation, factory-formed lengths, and installation methods that can accommodate thermal movement and site conditions. Across the series, Ultra Panel combines strong visual appeal with practical performance, including long-length capabilities, cost-effective installation, and a 40-year limited finish warranty.

Flush Panel - Smooth uninterrupted appearance
Flush RV Panel - Flat panel appearance with a defined reveal
Contour Panel - Profiled to add depth and dimension
Wave Panel -Ribbed to create shadow effects

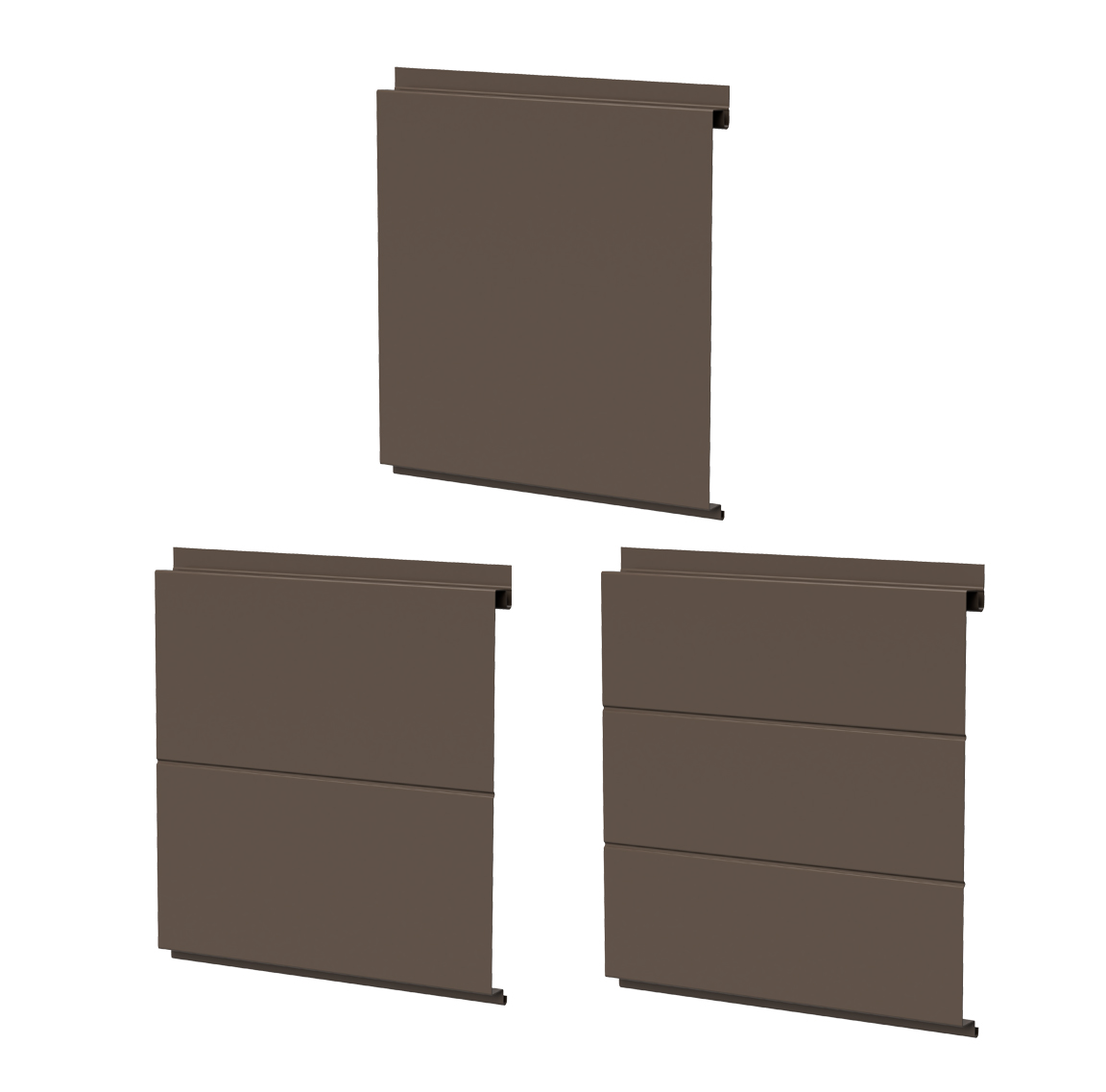

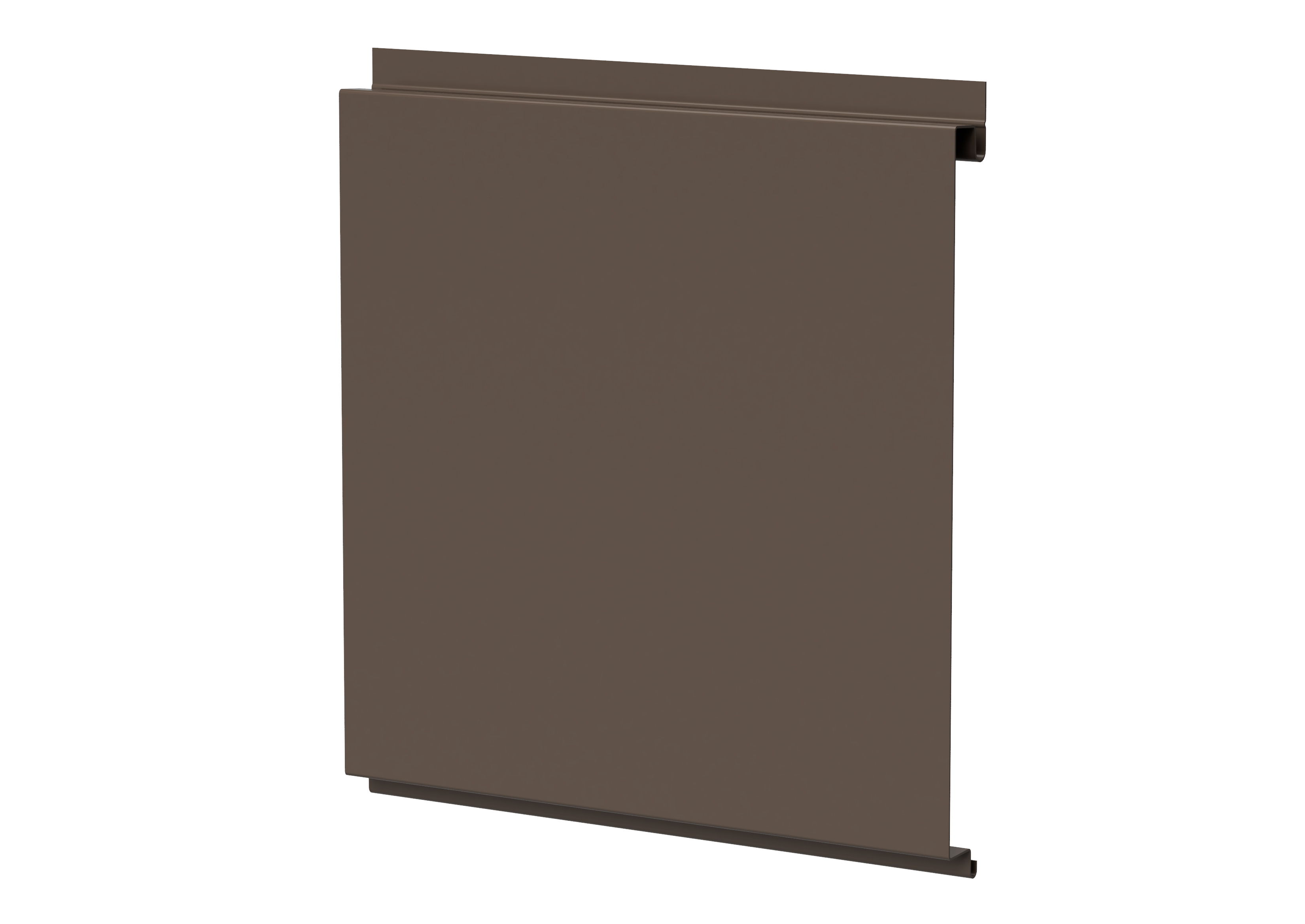

Flush Panel

Flush Panels are designed for wall, fascia, and soffit applications where a smooth, uninterrupted appearance is desired. A rounded interlocked leg with concealed fastening enhances the flush aesthetic while improving overall panel strength. Panels are factory-formed to length to reduce field cutting, with optional pencil ribs recommended for longer spans.

Order Form (View PDF)

Features & Benefits
- Leveled for Flatness
- Available with up to Two Pencil Ribs
- Rounded Interlock Leg Provides Improved Flush Fit
- 40-Year Limited Finish Warranty
- Panel Lengths from 4' to 25
- Available with Venting
- Optional Concealed Clips are Available for Added Wind Resistance

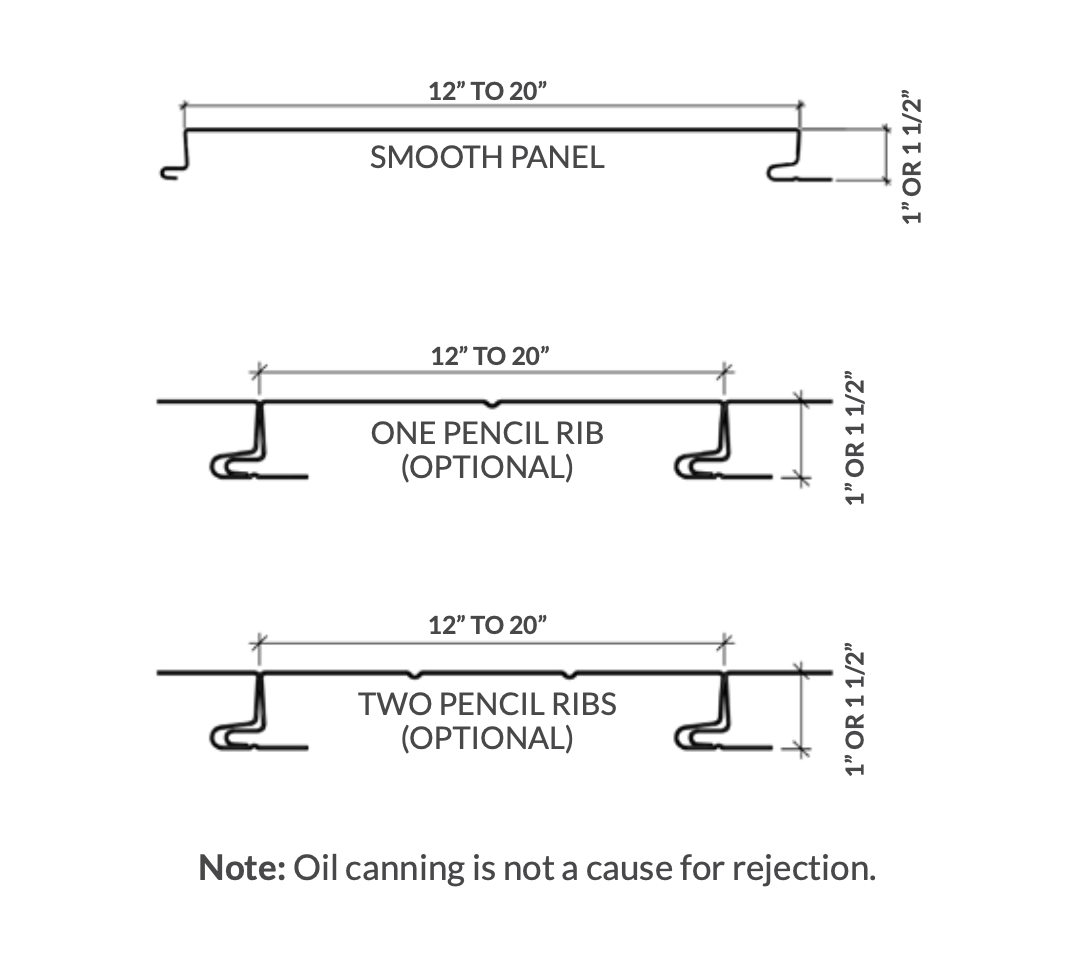

Details

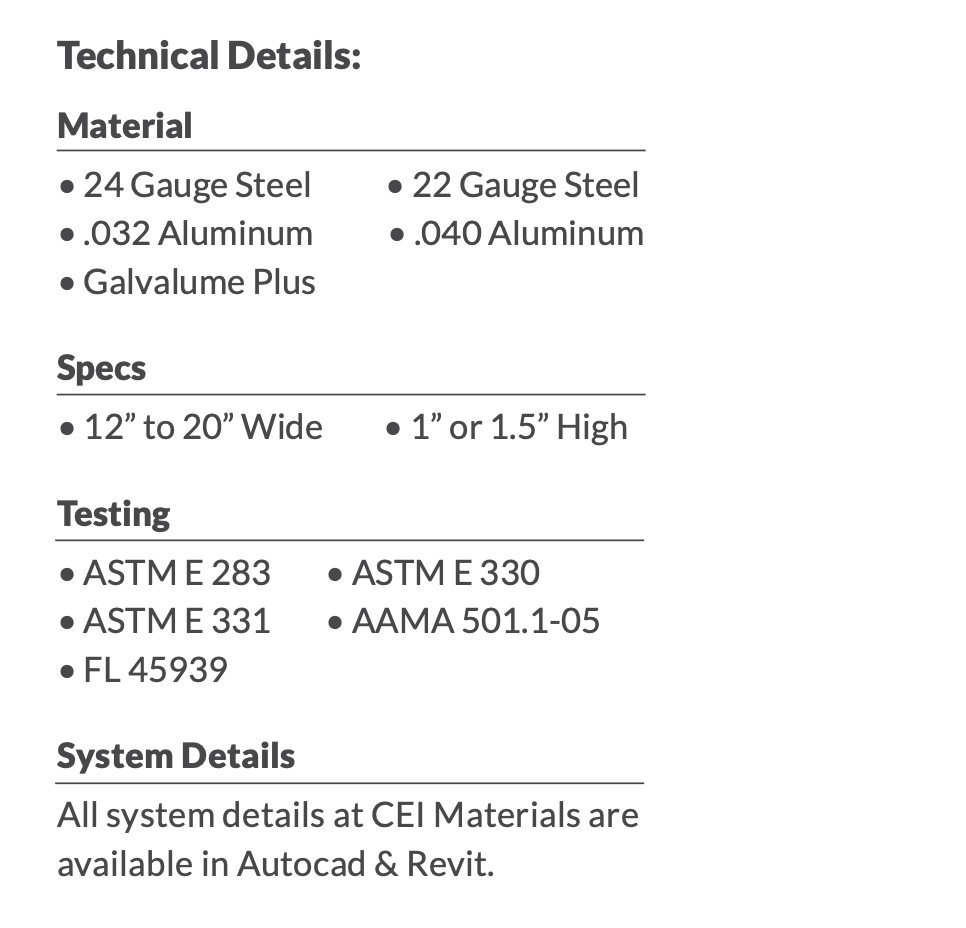

Technical Details

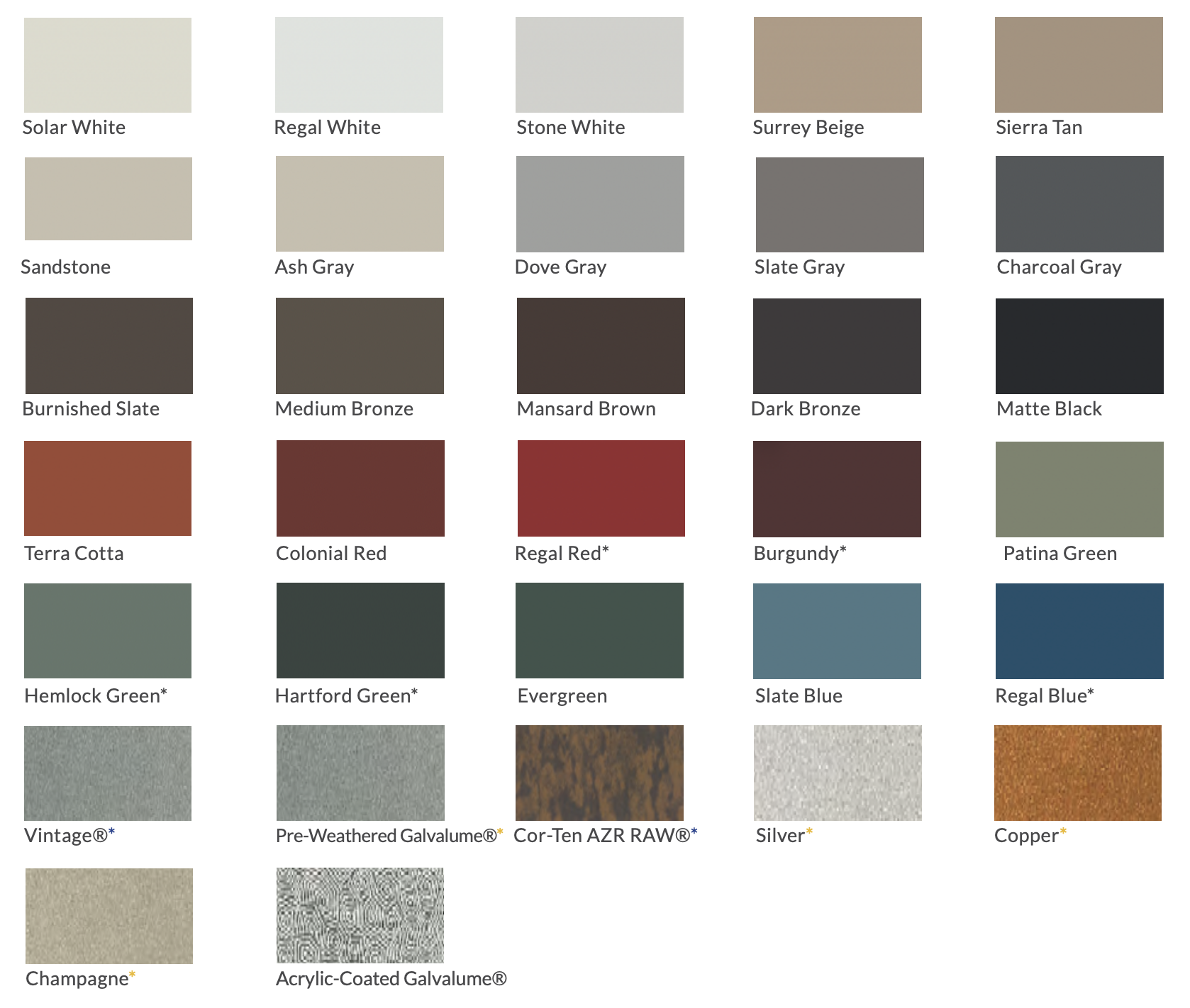

Color Options

Standard Finishes

Textured Low-Gloss (TLG) PVDF Colors

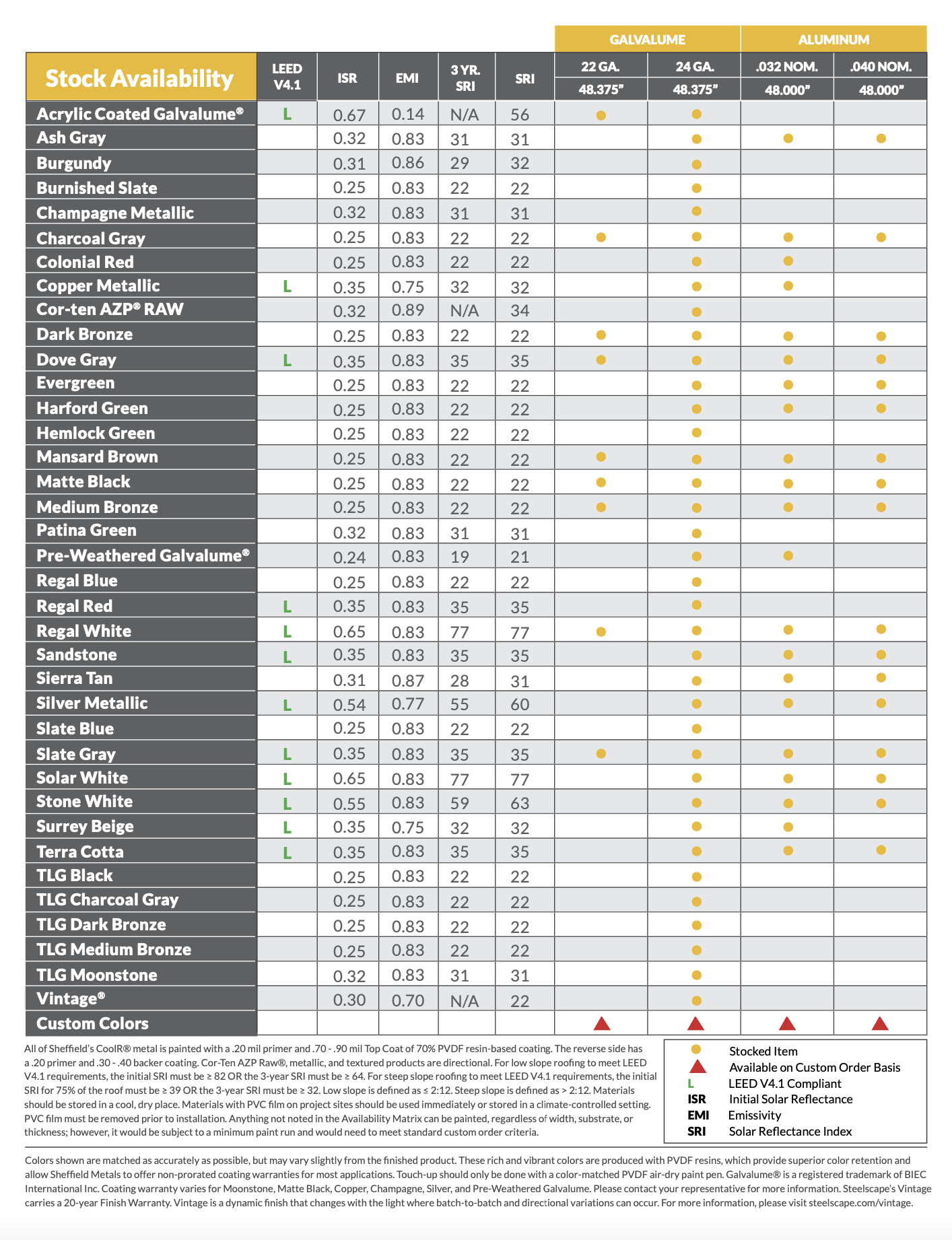

Ultra Panel Series Stock Availability

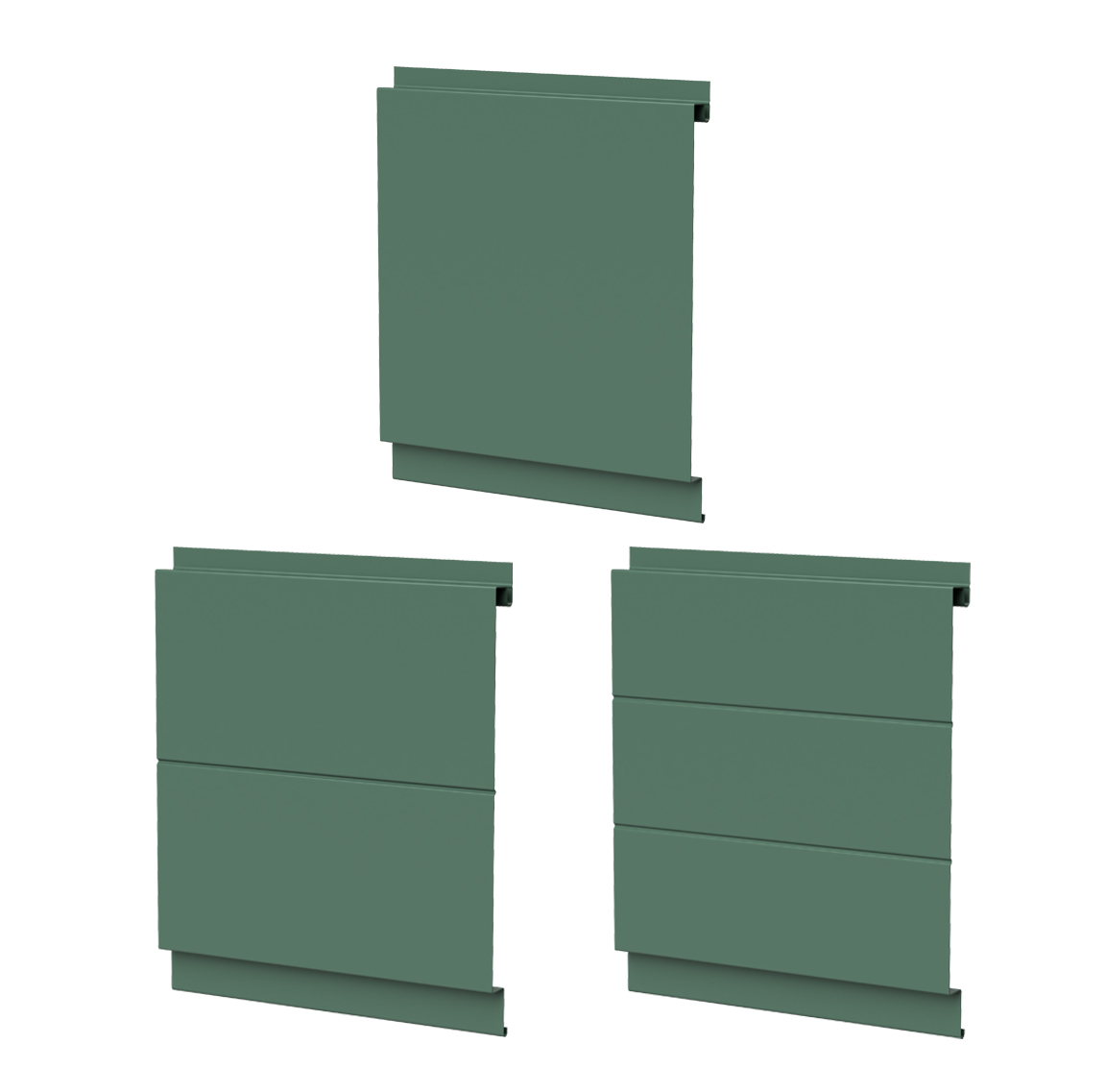

Ultra Panel Series - CEI Materials - Flush_RV_With_Ribs

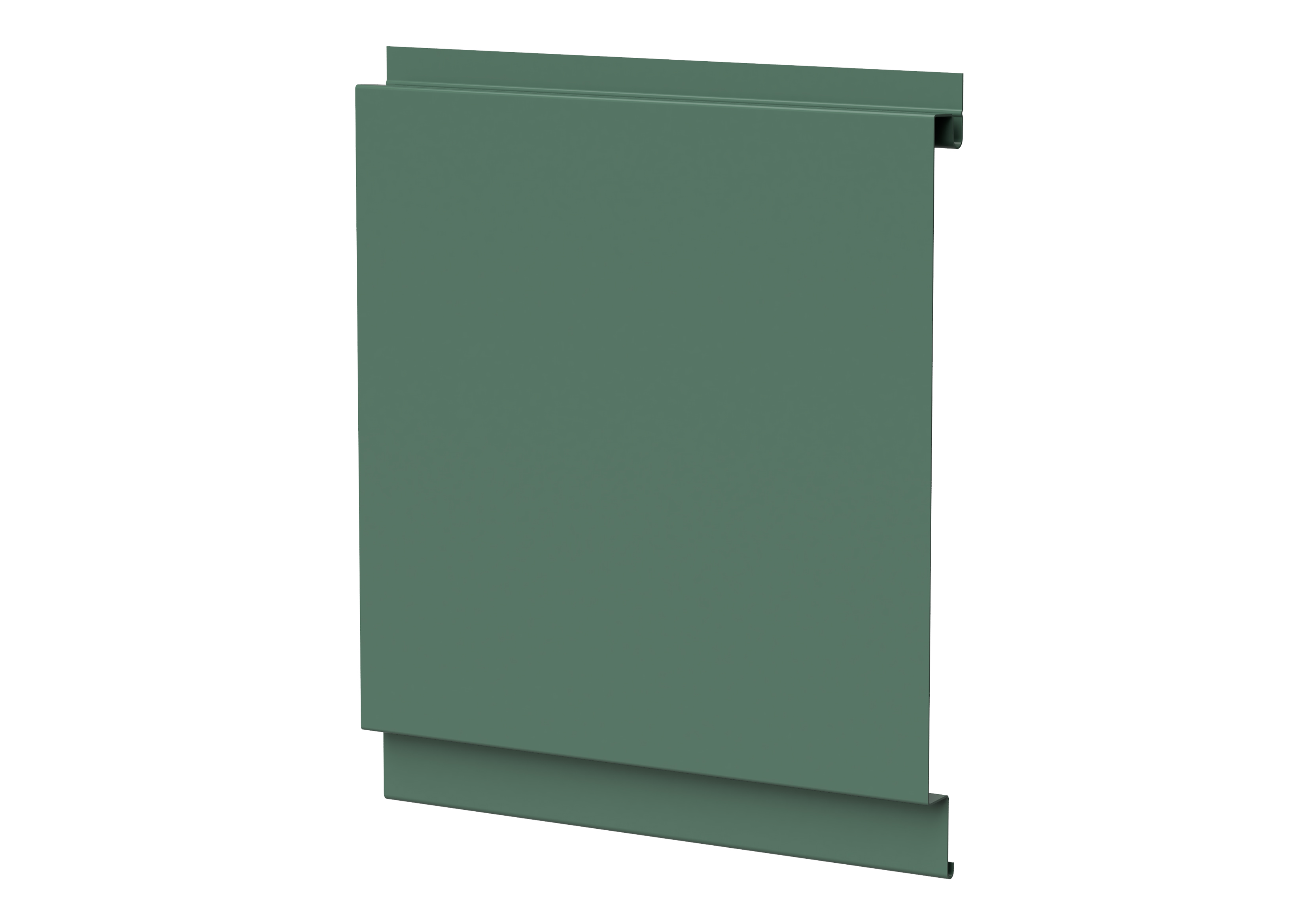

Flush RV Panel

Flush RV Panels are intended for wall, fascia, and soffit applications where a flat panel appearance is paired with a defined reveal. The system maintains clean sightlines while adding structural stability. Panels are factory-formed to length, with optional pencil ribs to enhance rigidity on longer panel runs.

Order Form (View PDF)

Features & Benefits
- Leveled for Flatness
- Available with up to Two Pencil Ribs
- Rounded Interlock Leg Provides Improved Flush Fit
- 40-Year Limited Finish Warranty
- Panel Lengths from 4' to 25'
- Available with Venting
- Optional Concealed Clips are Available for Added Wind Resistance
- Adjustable Reveal Available with 0"-3" Width in 1/2" Increments

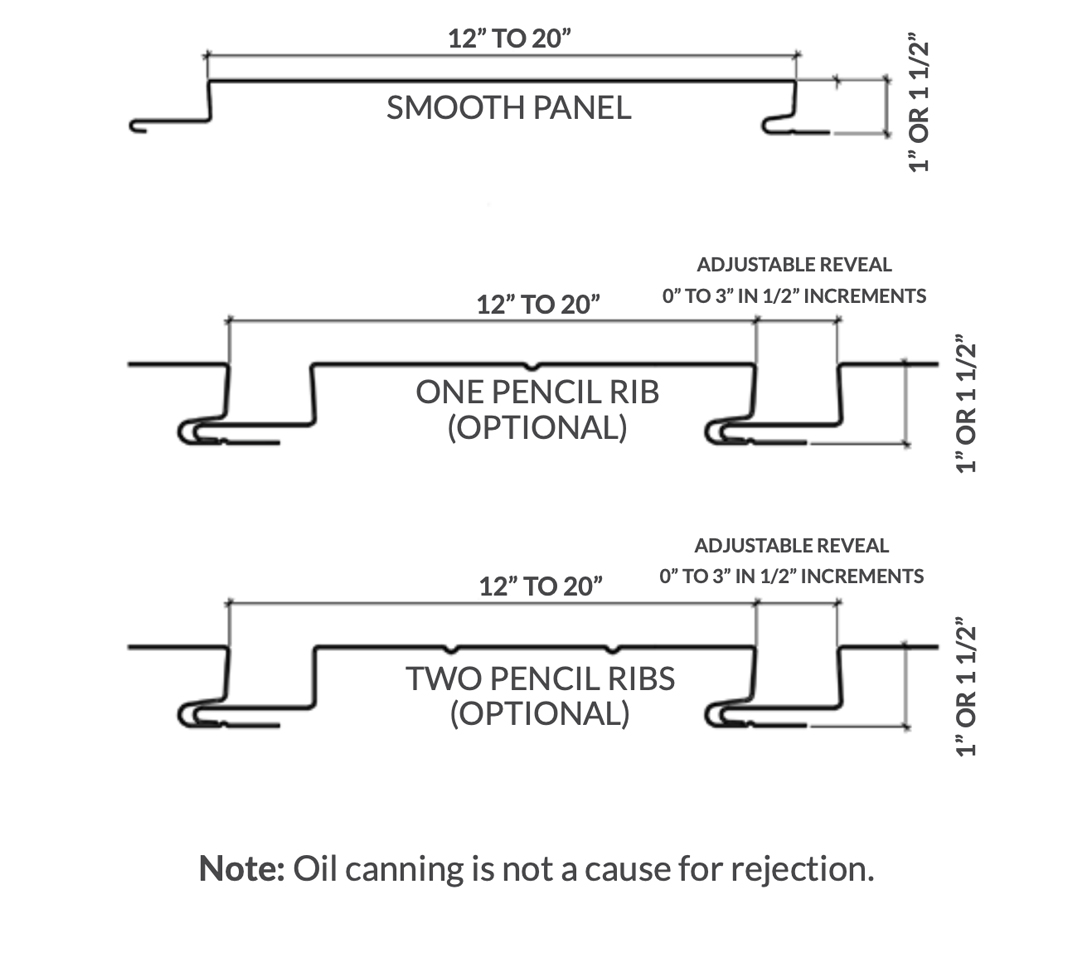

Details
Technical Details
Color Options

Standard Finishes

Textured Low-Gloss (TLG) PVDF Colors

Ultra Panel Series Stock Availability

Ultra Panel Series - CEI Materials - Contour

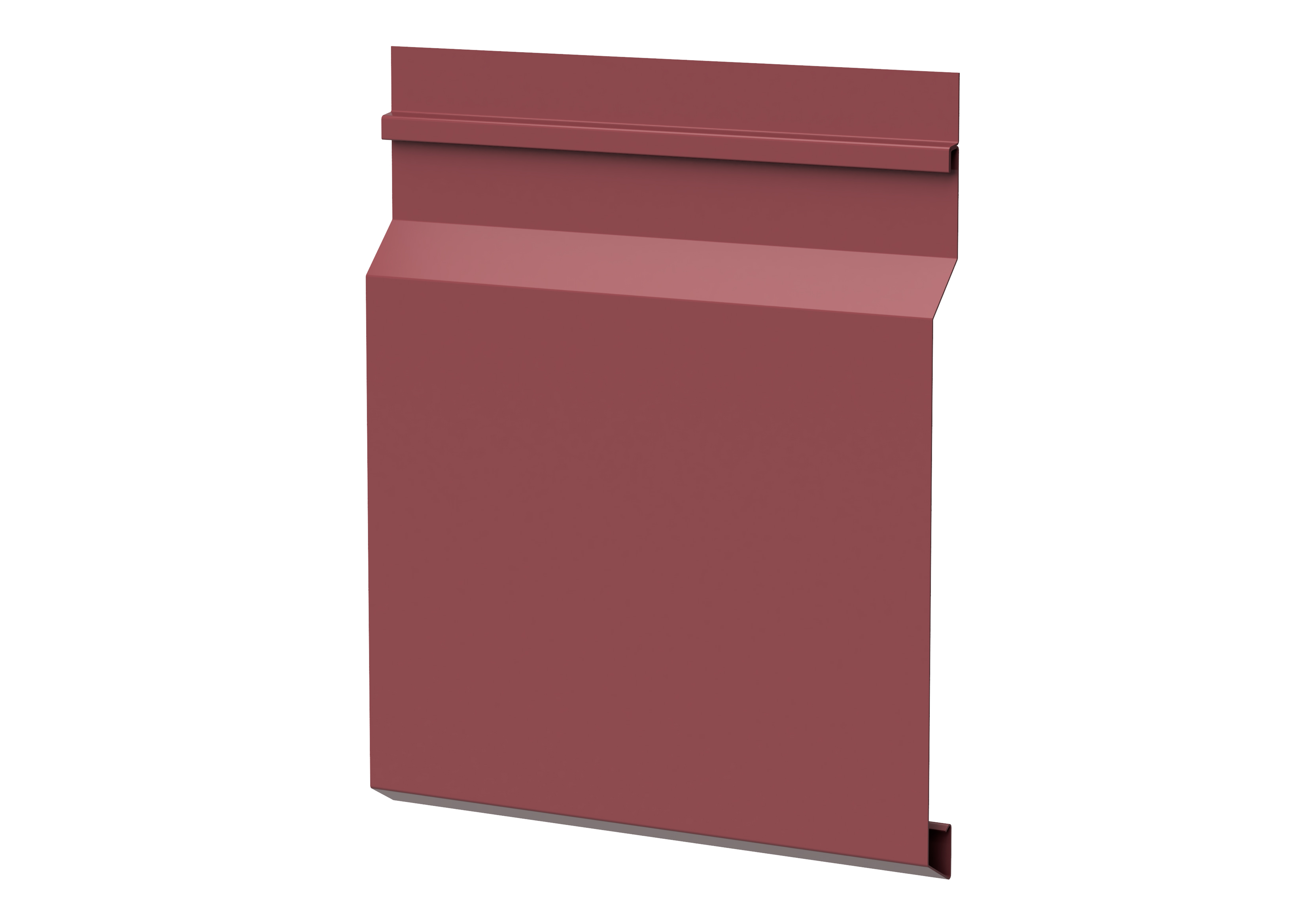

Contour Panel

Contour Panels are profiled architectural wall panels that add depth and dimension to building facades while providing flexibility and ease of installation. Panels can be intermixed with other Ultra Panel profiles to create dynamic exterior patterns.

Order Form (View PDF)

Features & Benefits
- Cost-Effective Installation
- Horizontal or Vertical Installation
- 40-Year Limited Finish Warranty
- Optional Clip Installation for Expansion/Contraction
- Panel Lengths: 30' Max for Steel, 25' Max for Aluminum on the Thru-Fastened Leg; Longer Lengths Available on Clip Panels

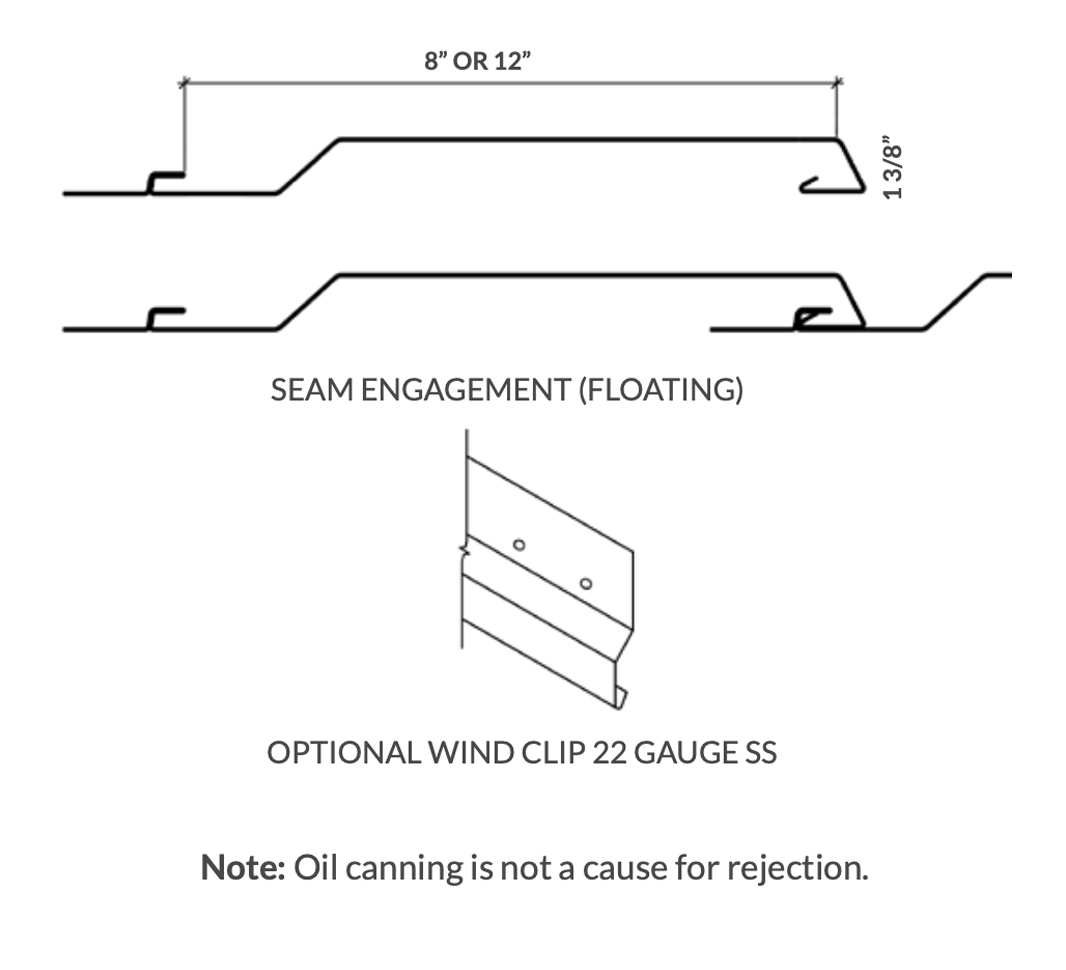

Details

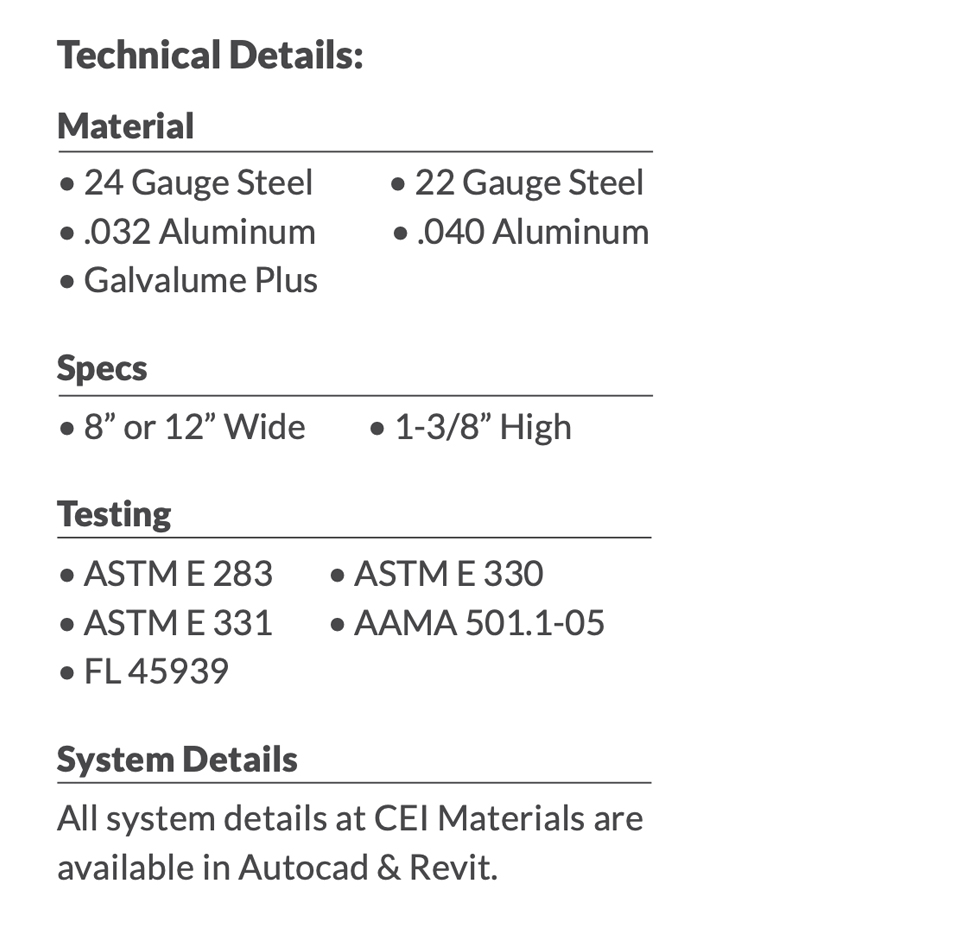

Technical Details
Color Options

Standard Finishes

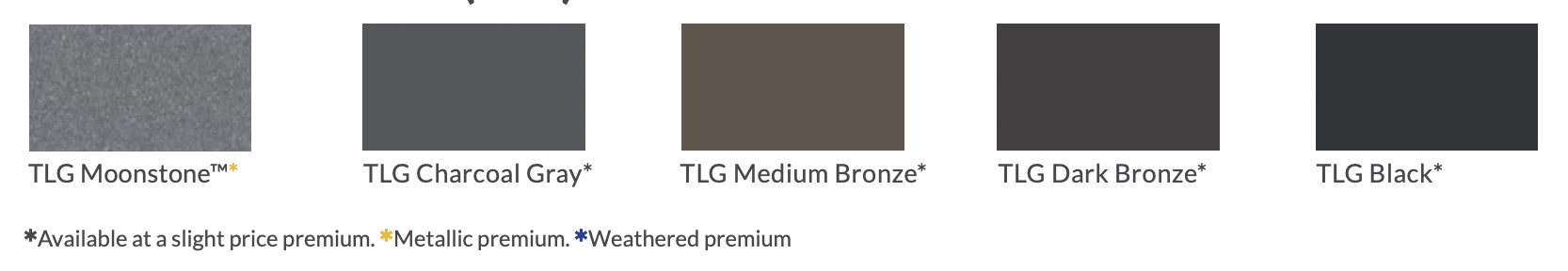

Textured Low-Gloss (TLG) PVDF Colors

Ultra Panel Series Stock Availability

Ultra Panel Series - CEI Materials - Wave

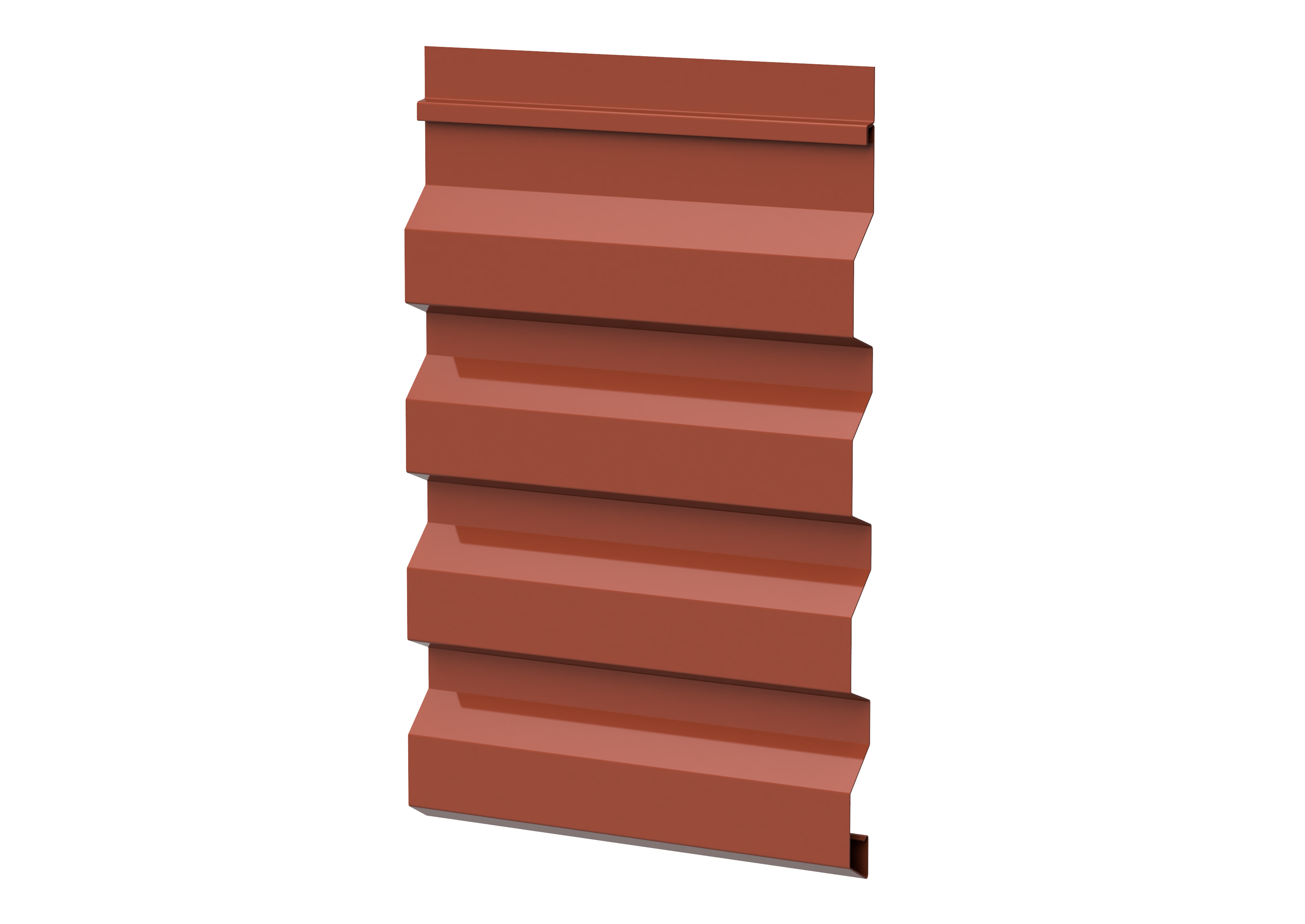

Wave Panel

Wave Panels are ribbed architectural wall panels designed to create strong lines and shadow effects. The profile depth provides design flexibility through bold visual expression paired with efficient, cost-effective installation. Panels may be specified with either a no-clip or clip-fastened attachment to accommodate thermal movement.

Order Form (View PDF)

Features & Benefits
- Cost-Effective Installation
- Horizontal or Vertical Installation
- 40-Year Limited Finish Warranty
- Optional Clip Installation for Expansion/Contraction
- Panel Lengths: 30' Max for Steel, 25' Max for Aluminum on the Thru-Fastened Leg; Longer Lengths Available on Clip Panels

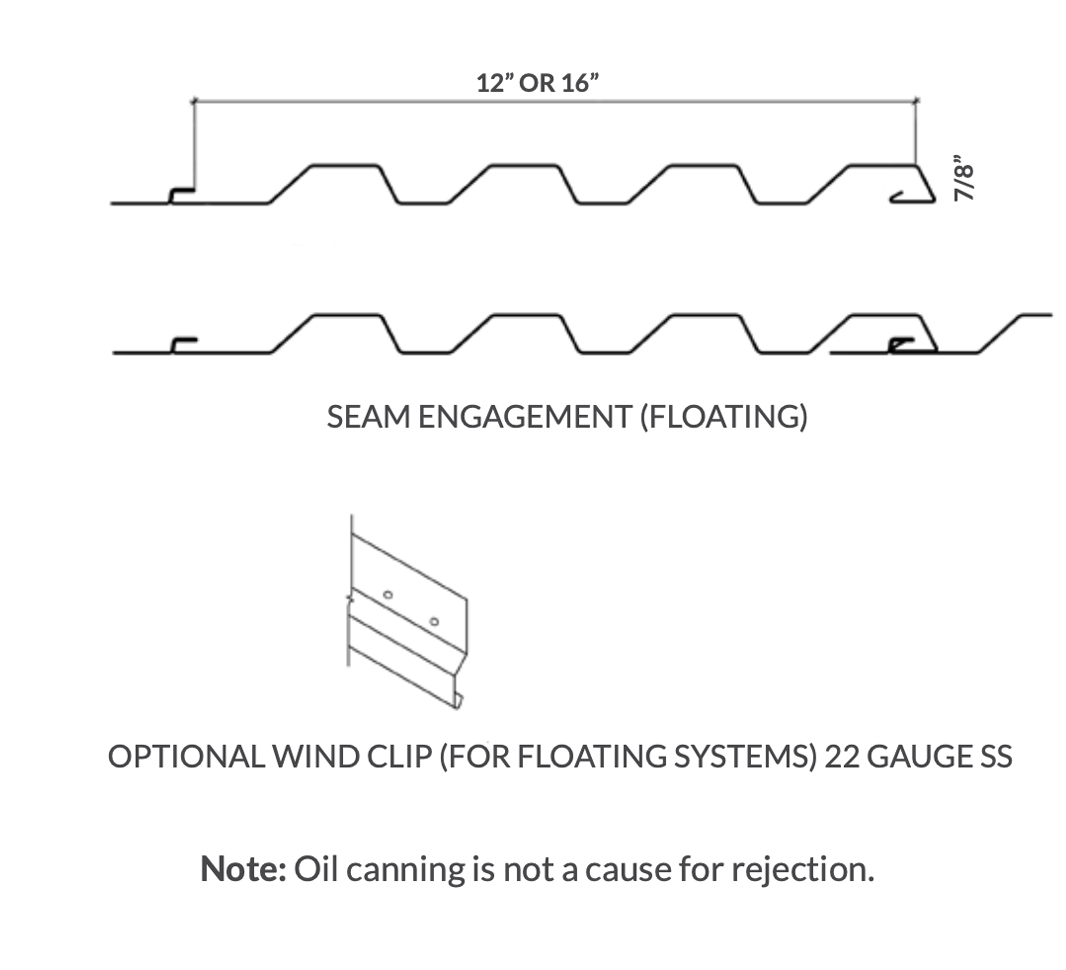

Details

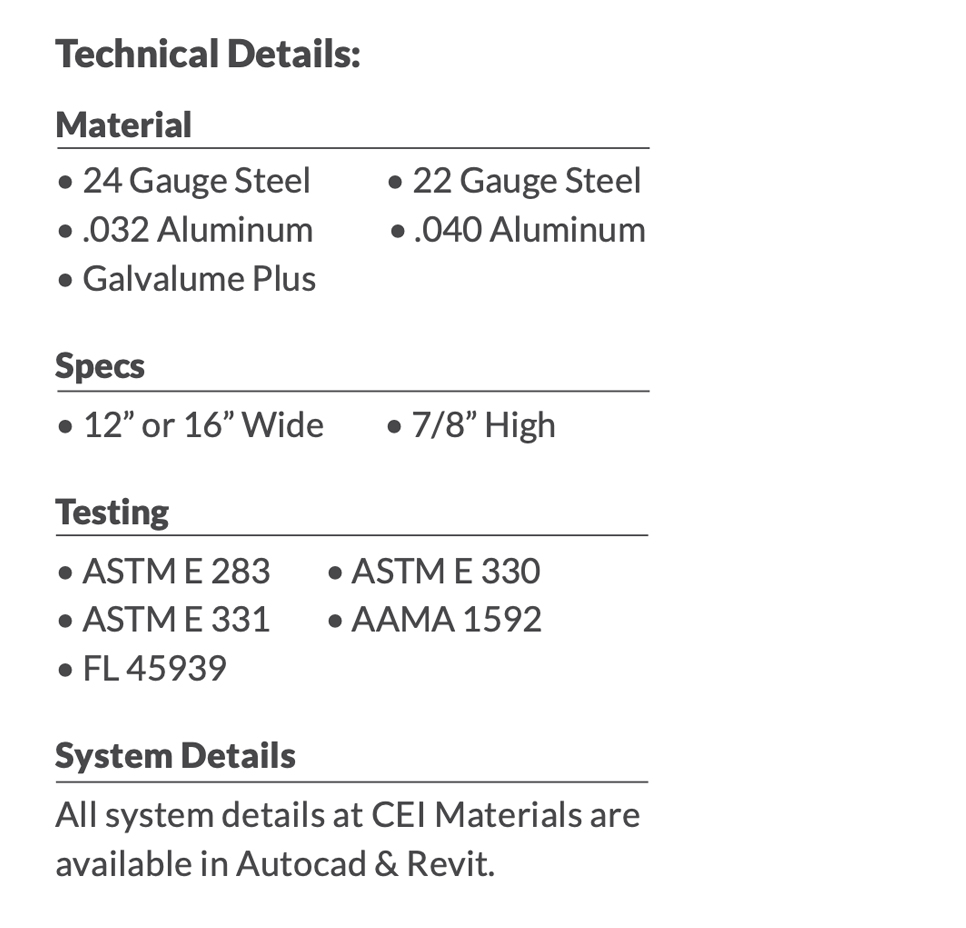

Technical Details
Color Options

Standard Finishes

Textured Low-Gloss (TLG) PVDF Colors

Ultra Panel Series Stock Availability
