C2000 Series System

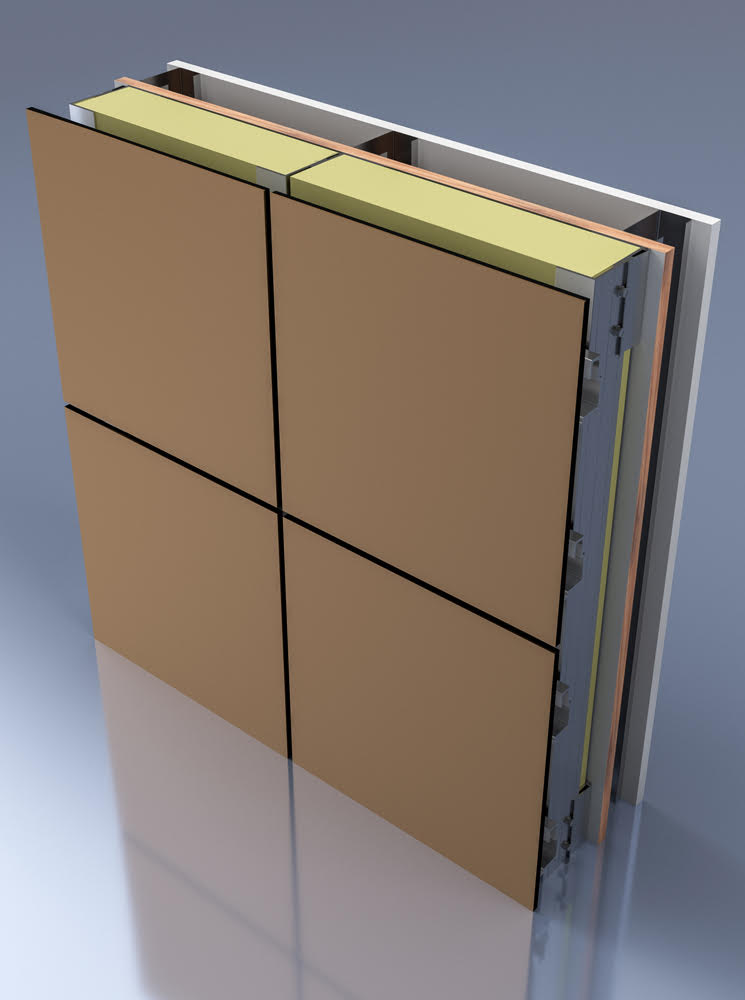

C2000 Concealed Fastener Attachment System - unnamed

C2000 Concealed Fastener Attachment Systems

CEI Materials C2000 Concealed Fastener Attachment Systems offer installation flexibility by using a concealed adjustable bracket for a smooth finish with precision joints.

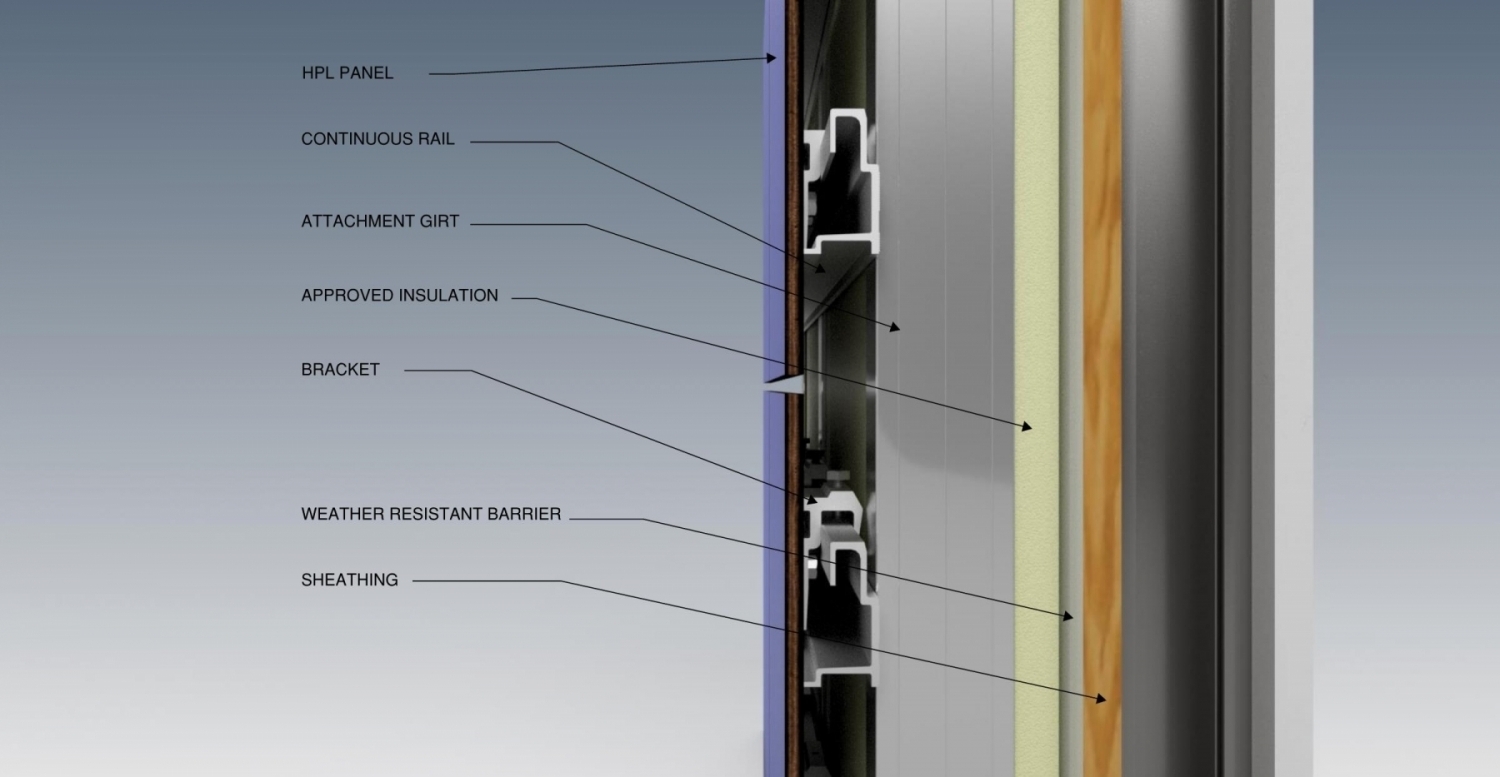

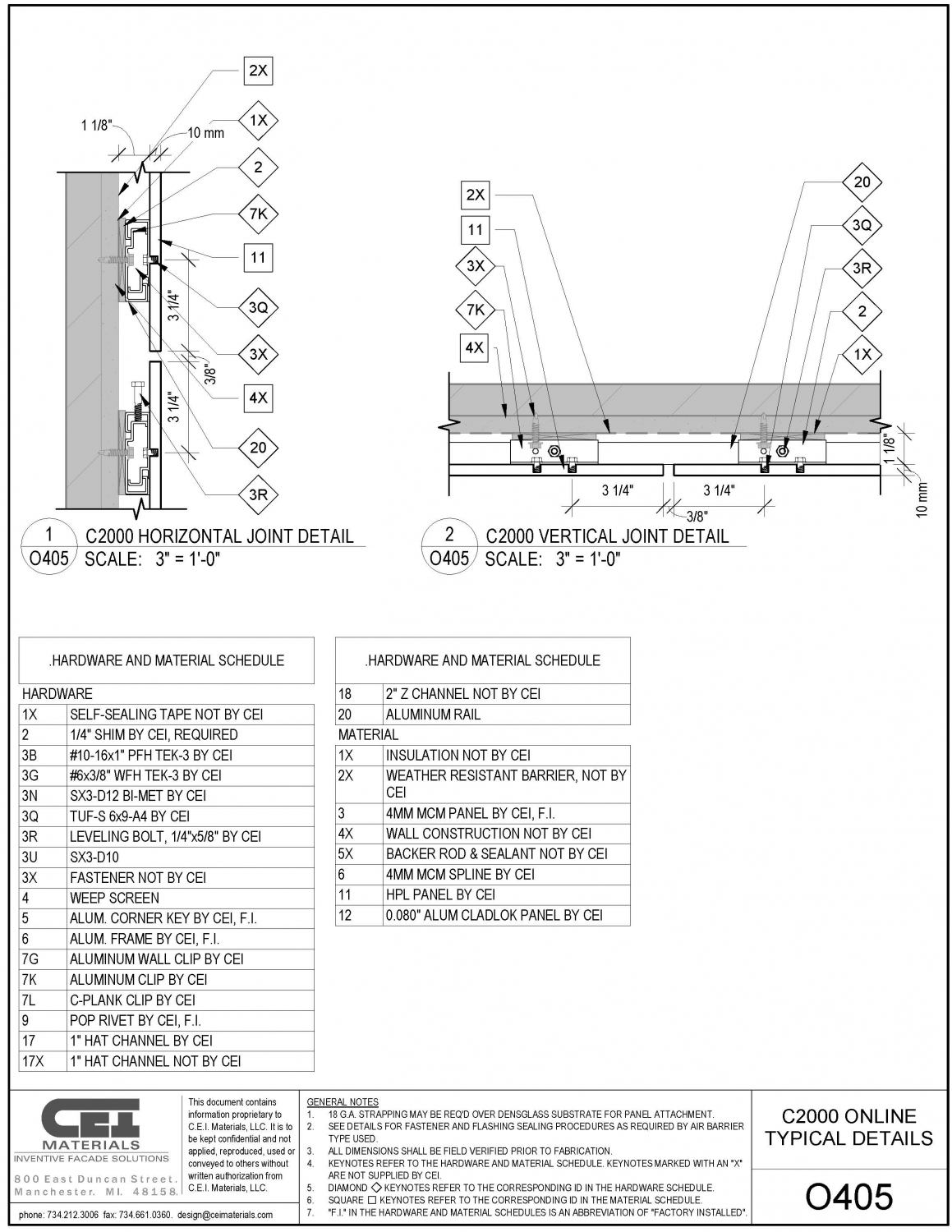

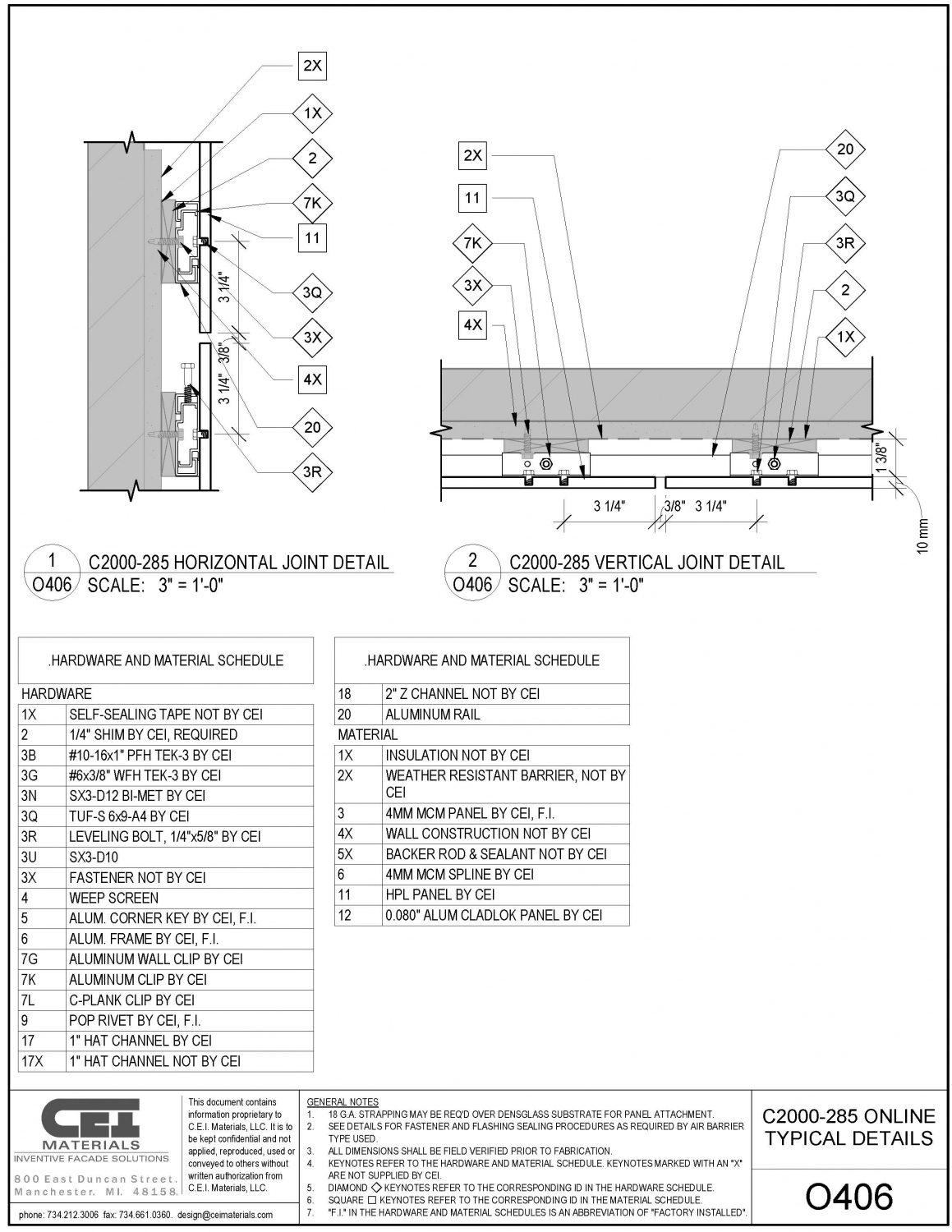

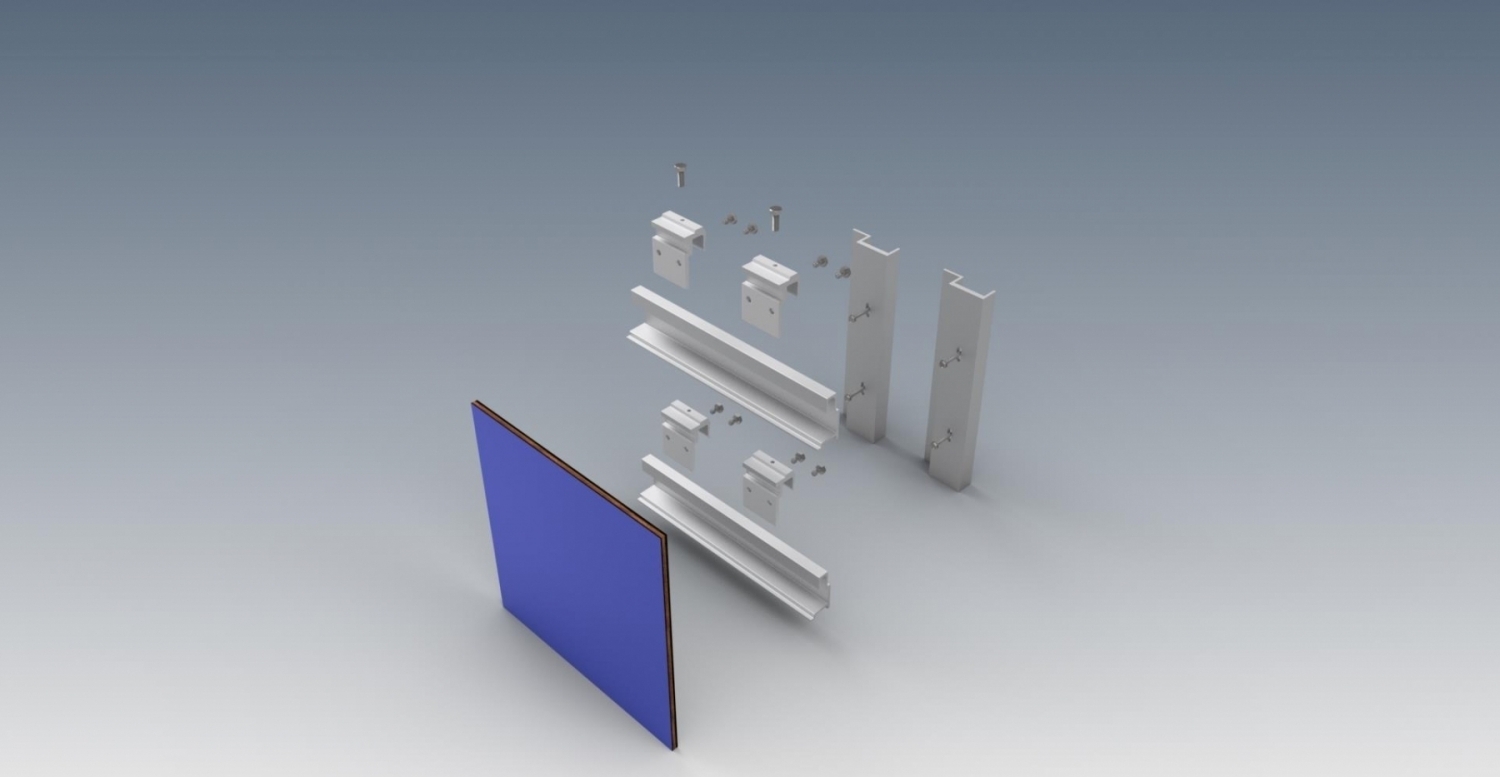

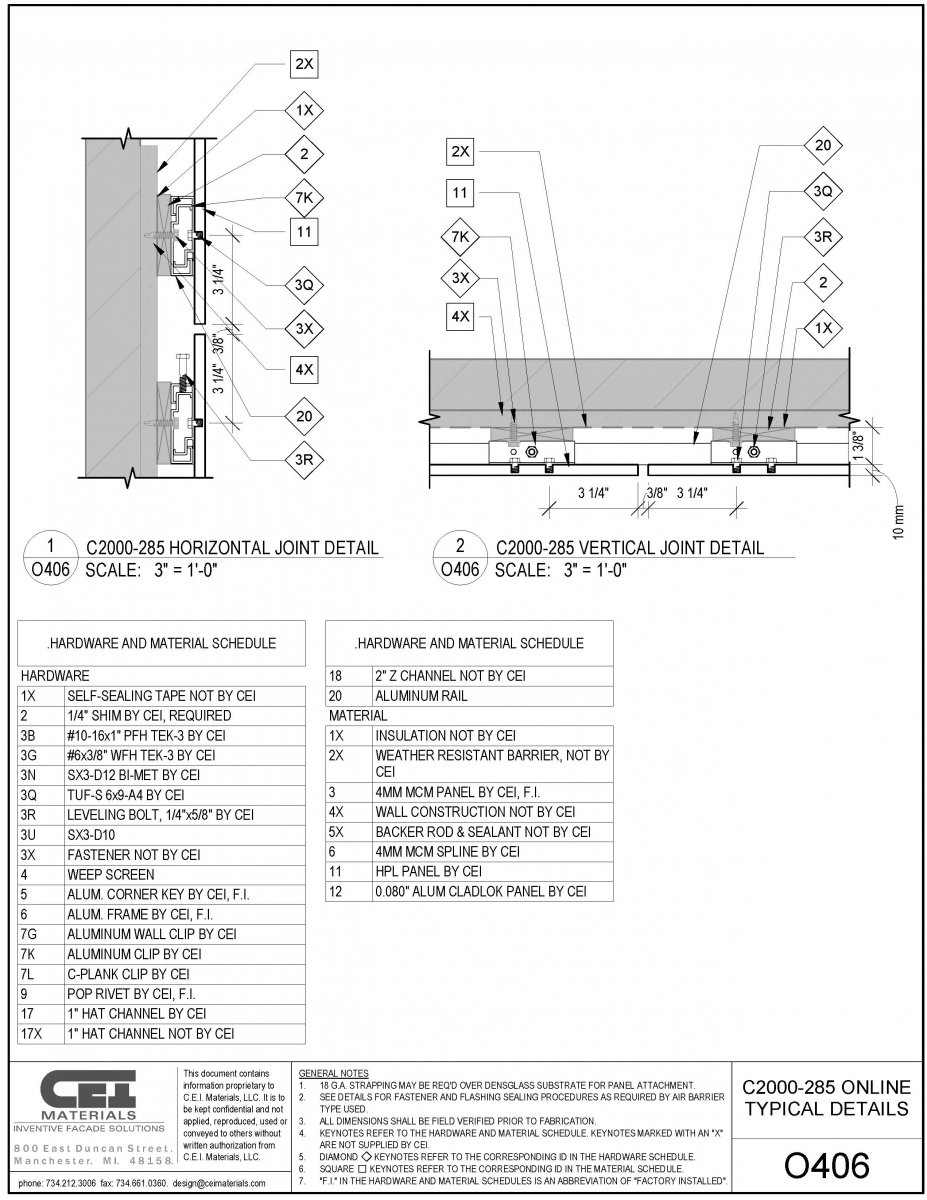

See Diagrams

System Characteristics

Drained Back Ventilated Rainscreen

1 3/8" System Depth

The back of each panel is pre-drilled to receive the hanger clip and anchor

Low Maintenance

Mill Finish or Black Anodized Rail

Systems Tested To:

ASTM E 283

ASTM E 330

ASTM E 331

AAMA 501.1

AAMA 509

Florida Product Approval

NFPA 285 Compliant
