Architectural Metal Wall Panels

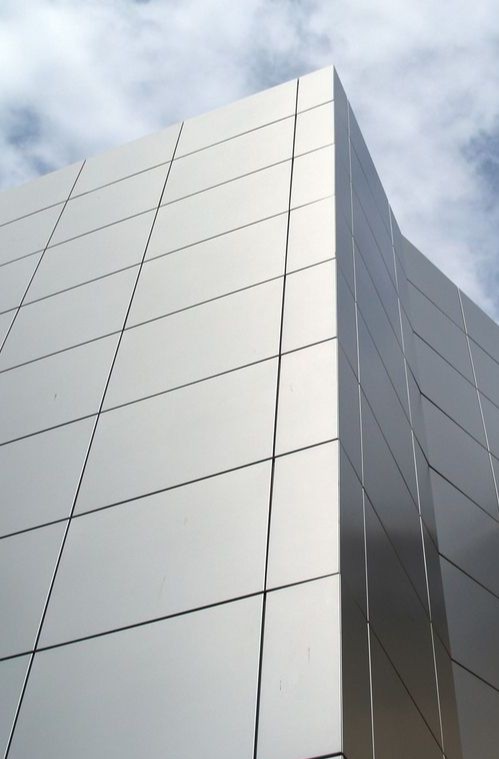

Architectural Metal Wall Panels | Precision Fabricated Systems - iStock-172366544-modified-414a78d6-b961-44c5-bb7e-4ac47ecbab672

Architectural Metal Wall Panels

CEI Materials fabricates architectural metal wall panels for projects that demand a balance of visual impact, installation precision, and long-term faade performance. The company's wall panel solutions are used on commercial, retail, institutional, multifamily, and specialty building envelopes nationwide, helping design and construction teams achieve clean lines, durable finishes, and system-backed performance. From sleek modular panel assemblies to large-format plate and MCM applications, CEI supports modern exterior wall design with engineered systems and project-specific fabrication.

For architects and contractors, the value of a metal wall panel supplier goes beyond appearance alone. Panel performance depends on material choice, attachment strategy, fabrication accuracy, code considerations, and the ability to coordinate with the total wall assembly. CEI supports those requirements through design assist services, field measurement technologies, BIM coordination, fabrication expertise, and tested system options that help teams move from concept to installation with greater confidence.

CEI Metal Wall Panel Options

MCM Panel Systems

MCM panels are a core part of CEI's architectural metal wall panel offering. Built with two aluminum skins bonded to a lightweight core, MCM panels provide exceptional flatness, precise geometry, and broad finish flexibility across large wall areas. They are commonly selected for projects where crisp lines, smooth surfaces, low maintenance, and lightweight performance are priorities. Within CEI's lineup, MCM can be integrated with R3000, R4000, W5000, and E1000 systems depending on the attachment strategy and design intent.

  • Well suited for large-scale commercial faades and brand-forward exterior applications
  • Supports a broad range of finishes and colors with strong visual consistency
  • Provides a lightweight, flat panel solution for modern wall panel programs

Aluminum Plate Panels

Aluminum plate panels are a strong option when a project needs greater dent resistance, rigidity, and non-composite solid metal construction. CEI offers 1/8 inch to 1/4 inch aluminum plate that can be bent, milled, perforated, embossed, and fabricated into complex shapes for highly customized faade programs. For specifiers, aluminum plate provides high wind resistance, 100 percent recyclability, and strong suitability for large cassette and panel applications.

  • Compatible systems include R3000, R4000, W5000, E1000, CL100, CL200, and CL300
  • Can be installed using screws, rivets, or hidden fixation systems
  • Good fit for projects requiring durability, sharp edges, thin angles, or complex geometry

CLADLOK™ Modular Panels

CLADLOK™ is CEI's cassette-style modular wall panel system designed to simplify installation while preserving architectural flexibility. Panels interlock with edges formed from a single piece of metal, reducing the need for complex extra components. This makes CLADLOK especially relevant for contractors who want field efficiency and designers who want more than a standard flat panel look.

  • Value Series (VS) for cost-efficient modular panel applications
  • Signature Series (SS) for greater design flexibility and profile variety
  • Custom Series (CS) for embossed, perforated, tapered, and project-specific panel designs
  • Pressure-equalized modular system compatible with continuous insulation strategies

INOVEZE™ Plank Panels

INOVEZE™ plank panels give the page a way to address linear exterior panel aesthetics within CEI's broader systems catalog. The system supports horizontal or vertical orientation, making it useful for designs that emphasize long reveals and contemporary directional lines.

HPL Accent Opportunities

While this keyword set is focused on metal wall panels, CEI's broader faade capabilities also allow teams to combine metal systems with HPL accent materials where a project needs wood-look, stone-look, or contrasting contemporary finishes. That makes CEI a stronger partner for mixed-material exterior programs rather than a single-product supplier.

Design Flexibility for Exterior Metal Panel Projects

A strong super page for this keyword should highlight the design range available through CEI's fabrication process. Using a mix of MCM, aluminum plate, and CLADLOK™ modular solutions, CEI can support flat panels, dimensional panels, tapered forms, perforated and embossed details, linear plank formats, and custom geometry tailored to a project's faade concept. Architectural finishes can include PVDF coatings, anodized finishes, and specialty color programs depending on the selected material and panel type.

Engineered for Precision Fit and Installation Efficiency

CEI's process support should be a prominent differentiator on this page. Through design assist and coordination workflows tied back to its systems expertise, CEI helps teams reduce risk before panels ever reach the site.

  • 3D laser scanning to verify as-built conditions before fabrication
  • BIM-ready coordination and detailed shop drawing support
  • Panel systems designed for efficient alignment and cleaner field installation
  • Project support for architects, contractors, and installers from preconstruction through fabrication

Performance, Testing, and Code Support

CEI's architectural metal wall panel positioning should be anchored in system-backed performance. Relevant proof points include ASTM E330 structural testing, AAMA rainscreen testing where applicable, and NFPA 285 considerations for exterior wall assemblies on code-sensitive projects. The company's systems overview and MCM systems resources provide the right proof-point foundation for this section.

Frequently Asked Questions

What is the difference between MCM and aluminum plate wall panels?
CEI's MCM panels use two aluminum skins bonded to a core, giving them exceptional flatness, lightweight performance, and broad finish flexibility. Aluminum plate panels are solid metal panels that offer greater dent resistance, rigidity, and a non-composite option for projects prioritizing durability or solid plate construction. The right choice depends on the performance, aesthetic, and structural priorities of the project.
Which CEI metal wall panel systems work best for large commercial exteriors?
That depends on the look, attachment method, and performance requirements of the faade. R3000 and R4000 are strong options for rainscreen-driven assemblies, while W5000 supports route-and-return silicone joint applications and CLADLOK™ offers a modular cassette-style solution for efficient installation. For more direct attachment strategies, E1000 can be a cost-effective option. CEI's design assist team can help narrow the best fit for a specific exterior wall program.
Can CEI fabricate custom shapes, perforations, or dimensional wall panels?
Yes. CEI's wall panel offering supports a wide range of custom fabrication possibilities, including perforated, embossed, tapered, and dimensional panel expressions. Those capabilities are especially relevant across aluminum plate and CLADLOK™ modular panel applications, where architectural form and visual differentiation are priorities.
Can CEI metal wall panels be installed horizontally or vertically?
Yes. CEI supports panel systems that can be adapted to different layout goals, including horizontal, vertical, or mixed orientations depending on the system and design intent. This is especially relevant for linear panel applications such as plank-style systems within CEI's broader systems catalog, where directional layout can influence the overall faade expression.
How does CEI improve fit and installation accuracy in the field?
CEI improves fit and installation accuracy through design assist, BIM coordination, and 3D laser scanning. These services help verify field conditions before fabrication, reduce measurement errors, and improve alignment once panels are installed. For contractors and installers, that can mean fewer field adjustments and a more efficient installation process.
Do CEI panel systems support code-sensitive wall assemblies and NFPA 285 requirements?
CEI positions its exterior wall panel solutions around tested system performance and total wall assembly awareness. On its systems overview and MCM systems resource, the company highlights ASTM and AAMA testing and addresses NFPA 285 compliance requirements where applicable. For code-sensitive applications, CEI works with project teams to evaluate the selected panel system within the broader wall assembly.
